Cadillac Rear Emblem Light Description
• Cadillac XTS (2016–2017)
• Cadillac CTS (2015–2019)
• Cadillac Escalade (2015–2020)
For other models: Verify compatibility by measuring your original factory rear emblem size before purchase.
Product Specifications

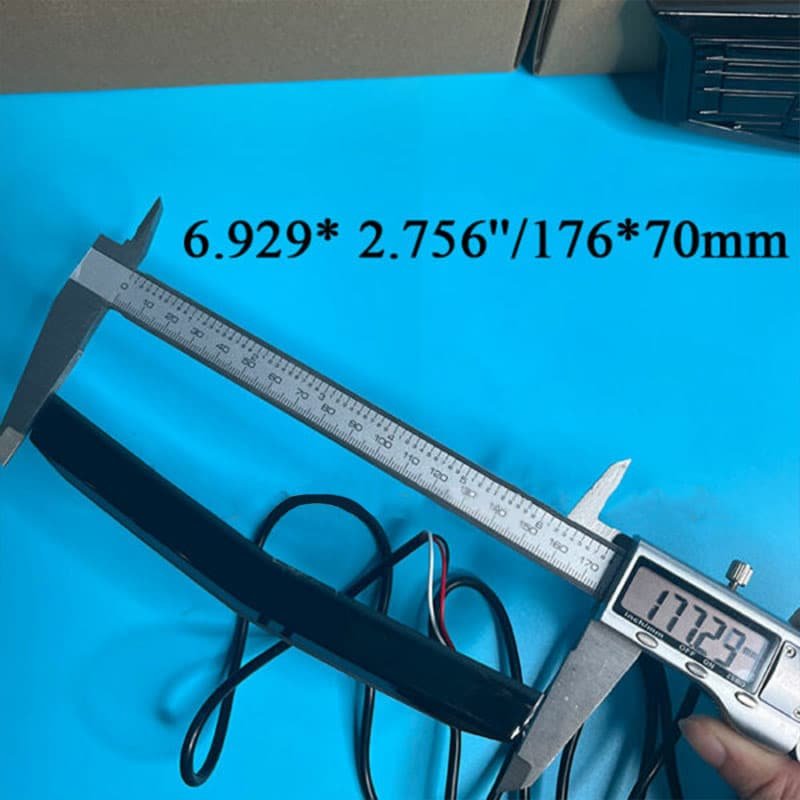

Dimensions: 6.929″ x 2.756″ (176 mm x 70 mm).
Installation Guide
Wiring Connections:
Black Wire: Connect to the ground (-) terminal.
Red Wire: Connect to the positive (+) terminal of your taillight.
White Wire: Connect to the high-mount brake light circuit.
Optional Setup: To disable the red brake light feature, omit connecting the white wire.
How It Works

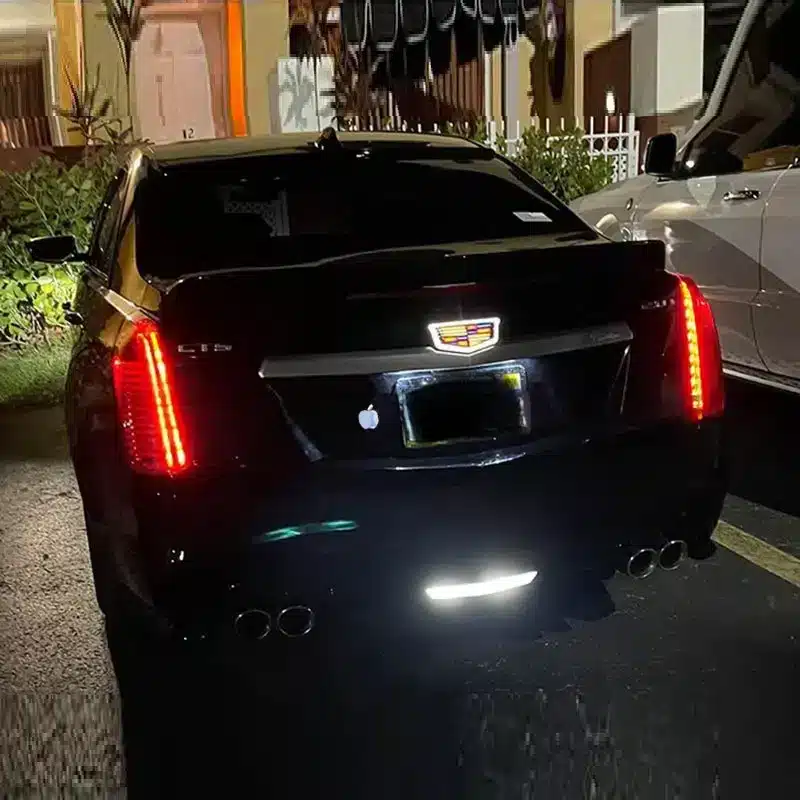

Startup: The emblem lights up with a dynamic animation when the vehicle is turned on.
Driving: Remains illuminated as a steady light while driving.

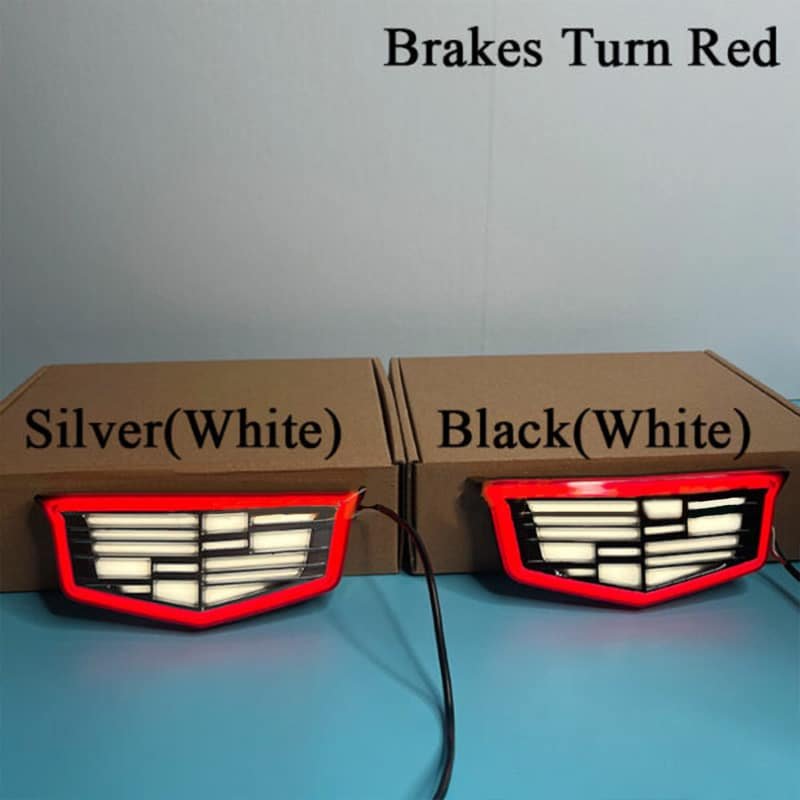

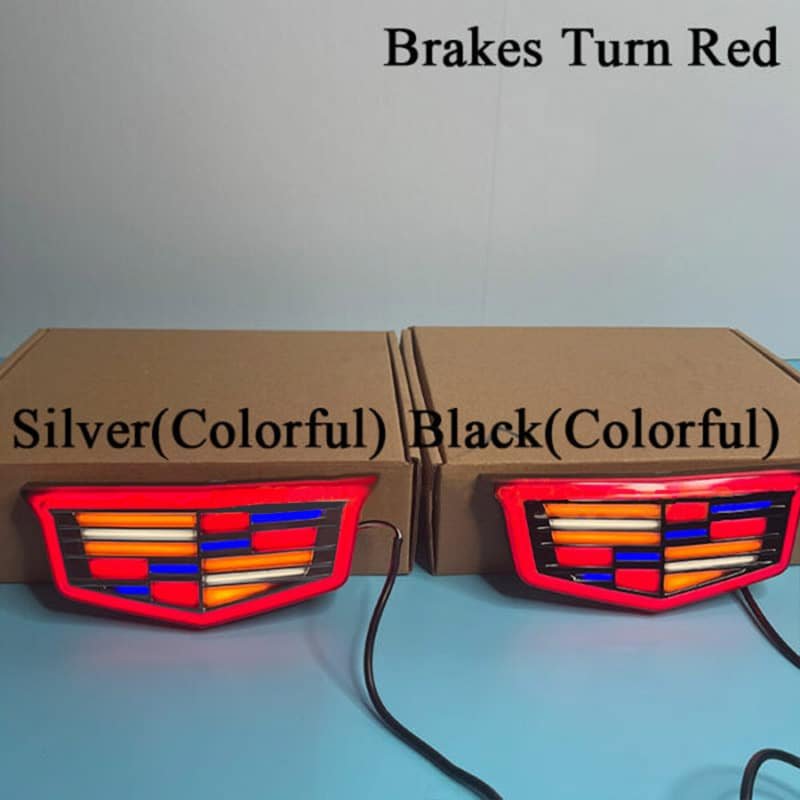

Braking: Automatically turns red when the brake is applied.
Customization: Disconnect the white wire if you prefer the emblem to stay static (no red light during braking).
Important Notes
- For safety, ensure all connections are secure and insulated.
- Compatible with most Cadillacs, but always confirm sizing for non-listed models.
This streamlined design enhances your Cadillac’s aesthetics while maintaining functionality. Perfect for adding a modern touch to your vehicle’s rear profile!
